Dynamic USB Configuration

One-KVM uses a USB OTG Gadget to enumerate a composite USB device to the target (keyboard, mice, consumer/multimedia keys, and optionally virtual media / MSD). These options apply only when the HID backend is USB OTG; they do not apply to CH9329 serial HID or when HID is disabled.

Configuration

Under Settings → Hardware → HID, when the backend is USB OTG:

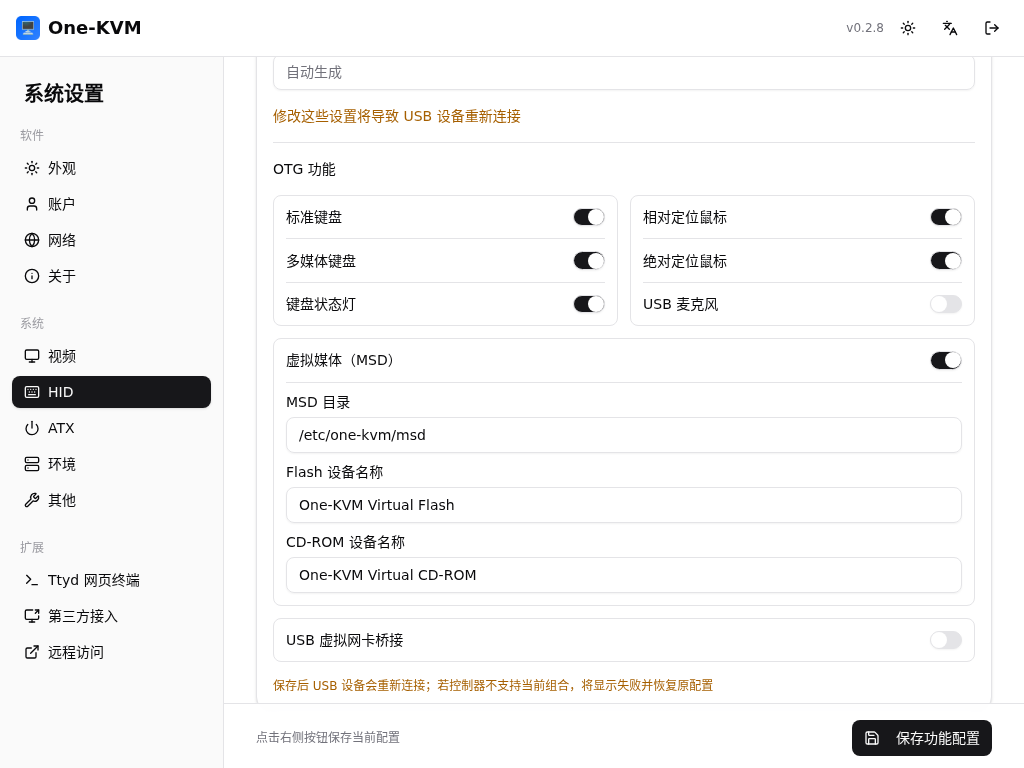

  • OTG HID functions: Toggle the capabilities exposed to the host. Before saving, at least one of keyboard, relative mouse, absolute mouse, or multimedia (consumer) keyboard must be enabled (MSD alone without any HID function is not allowed):
  • Relative mouse: classic relative movement (HID boot mouse style)
  • Absolute mouse: absolute positioning (tablet/touch-style usage)
  • Keyboard: standard HID keyboard
  • Multimedia keyboard: Consumer Control (volume, play/pause, etc.)
  • Keyboard status LEDs: sync Caps/Num/Scroll with the host; when keyboard is on, enabling this adds one more endpoint
  • Virtual media (MSD): exposes USB mass storage to the target; uses 2 endpoints
  • Maximum endpoints: 5, 6, or Unlimited — a software budget aligned with your UDC hardware. The UI shows current endpoint usage (estimated). Saving is blocked if the selection exceeds the limit. Some low-endpoint controllers may map to a more conservative default when config is loaded. Whether a given layout works in practice still depends on hardware limits—for example Allwinner SoCs often expose 5 endpoints and Amlogic 6.

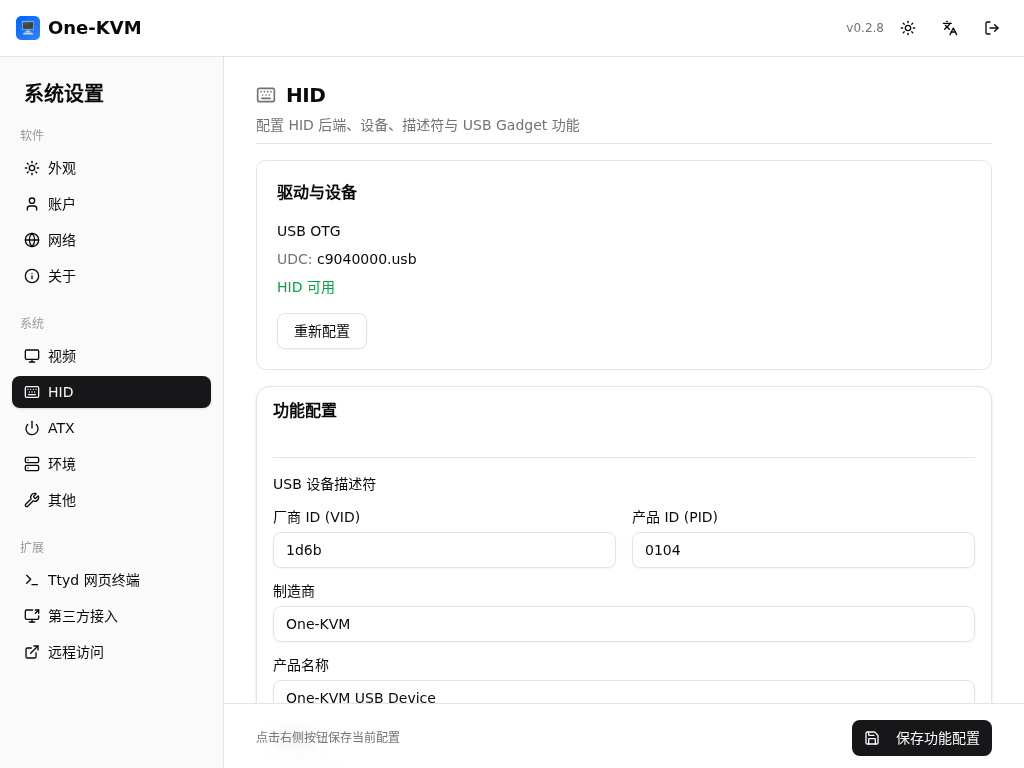

  • USB device descriptor: VID, PID, manufacturer, product name, and serial number (serial may be left empty for auto-generation)

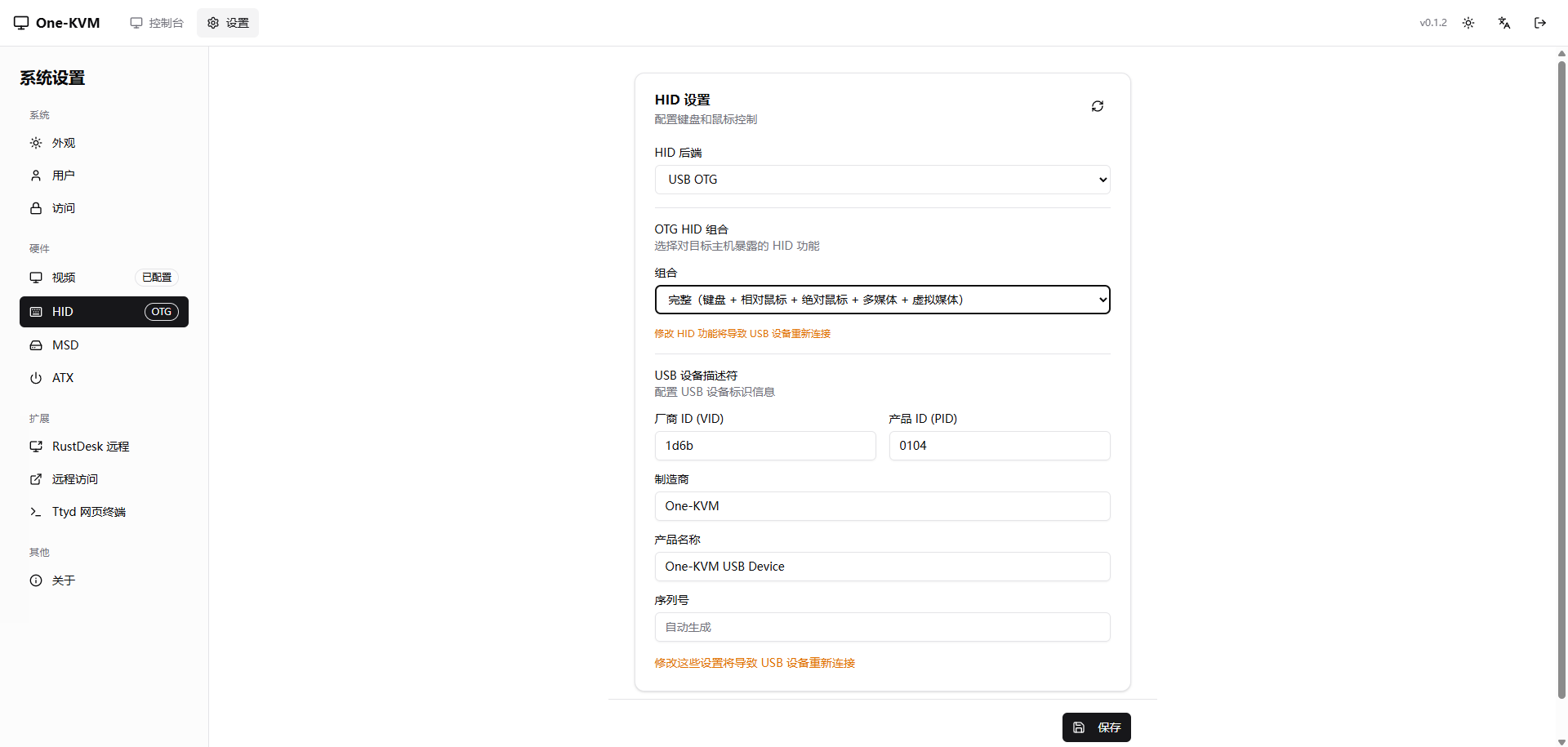

usb_dynamic-2026-01-28-00-14-21 usb_dynamic-2026-01-28-00-14-39

Steps

  1. Open Settings → Hardware → HID
  2. Set HID backend to USB OTG
  3. Set maximum endpoints and enable the desired OTG HID toggles and MSD (watch the usage line)
  4. Adjust USB device descriptor fields if you need different USB identity strings
  5. Click Save to apply

USB re-enumeration

Changing OTG HID functions, MSD, or the USB descriptor will reconnect the USB device. This is expected.
