FRP NAT Traversal

FRP can expose local One-KVM services to the public internet so you can access the KVM console remotely. One-KVM includes a built-in FRPC extension that can connect to an FRPS server from the web UI using either a quick form or a full TOML config.

frpc must be installed on the system and the extension page must show it as "Available". Prepare the FRPS server address, server port, token, and remote port in advance. You can use a self-hosted FRPS server or a third-party FRP provider.

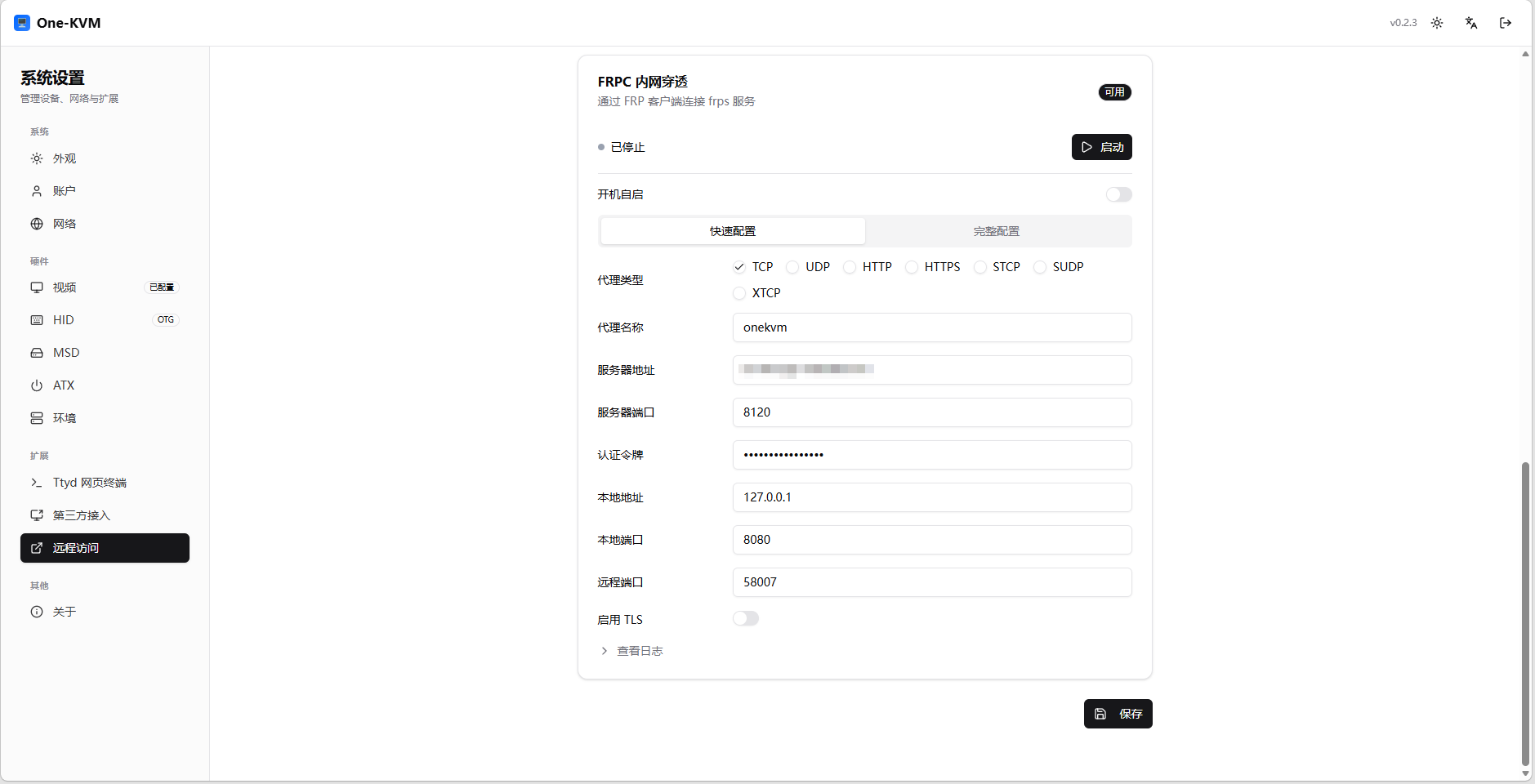

FRP extension page

Configuration

Item Description Example/Default
Auto start Start FRPC automatically after system boot Off
Proxy type FRP proxy protocol. TCP is commonly used for web access TCP
Proxy name Name of this proxy entry onekvm
Server address FRPS server domain or IP, without http:// or https:// frp.example.com
Server port FRPS listening port 7000
Token Token configured on the FRPS server -
Local address Local One-KVM service address 127.0.0.1
Local port One-KVM web port, usually 8080 8080
Remote port Public port exposed by FRPS 58007
TLS Enable when supported by the FRPS server Off

Quick Config

Quick config is suitable for common TCP port mapping. Open Settings -> Extensions -> Remote Access -> FRPC NAT Traversal, select Quick Config, and enter the server and port information.

To expose the One-KVM web UI, usually keep:

  • Local address: 127.0.0.1
  • Local port: 8080
  • Proxy type: TCP

After filling in the form, click Save, then Start.

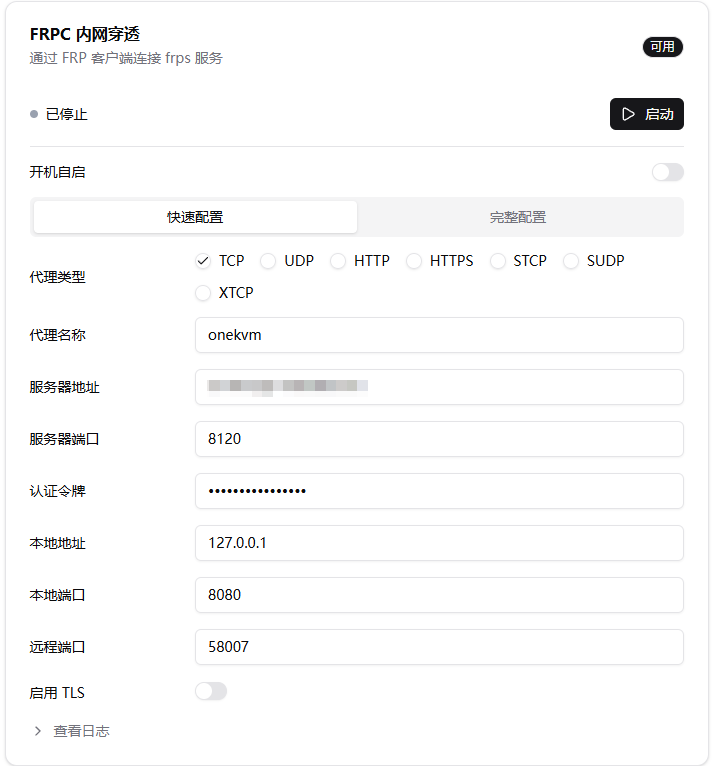

FRP quick config

Full Config

For advanced FRP usage, or when using a config exported by a third-party provider, switch to Full Config and paste the frpc.toml content directly.

Full config uses the TOML content in the text area as the FRPC startup config. This is suitable for multiple proxies, TLS, custom transports, and provider-specific templates.

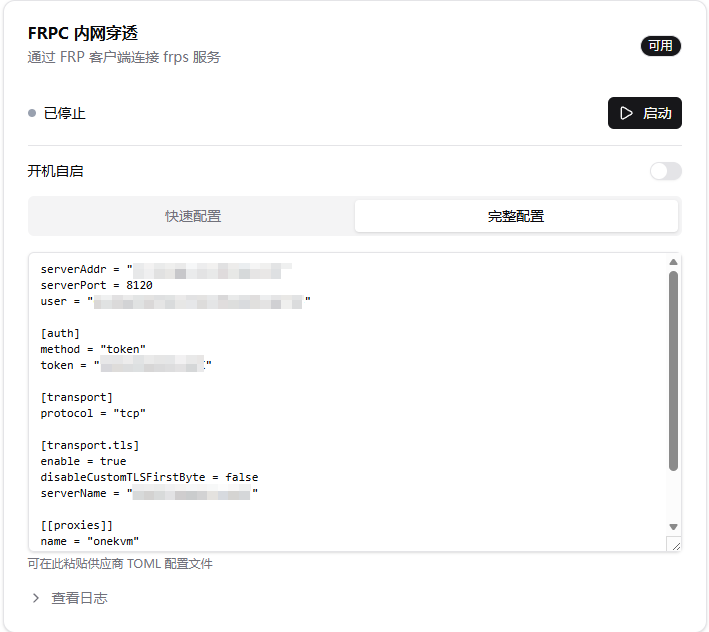

FRP full config

Logs

After startup, expand View Logs to check the connection status. In a normal startup, the logs should show login to the server, proxy registration, and proxy startup messages.

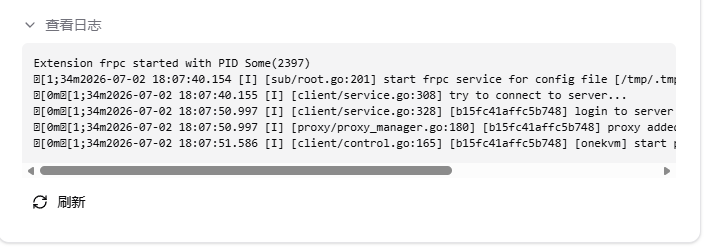

FRP logs

Remote Access

After startup succeeds, access it externally with:

1
http://server-address:remote-port

If One-KVM is configured with HTTPS, or the provider gives you an HTTPS endpoint, use https:// according to the actual endpoint.

Security Recommendation

FRP exposes One-KVM to the public internet. Use a strong password and avoid using common ports that are easy to scan.
